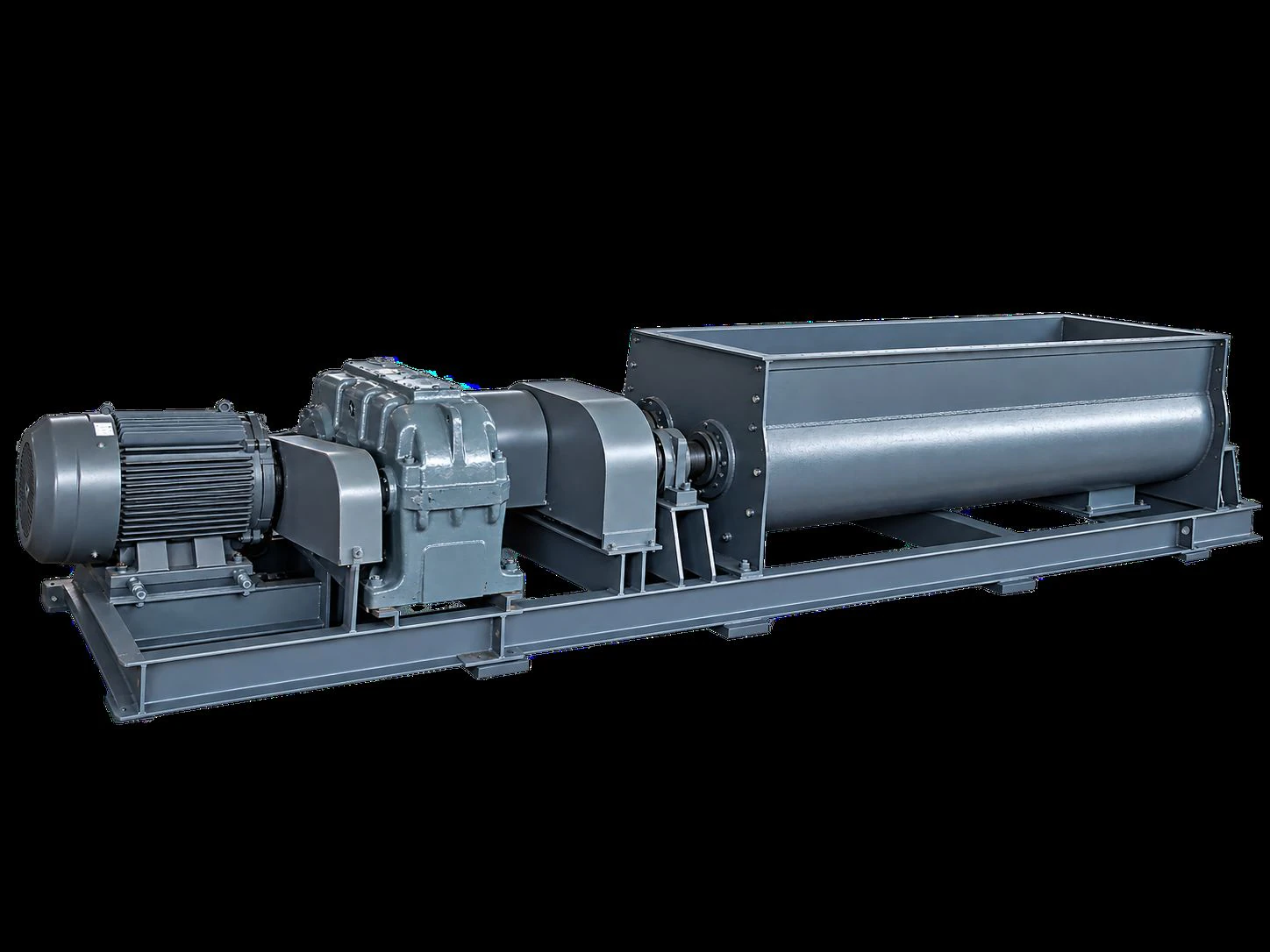

Twin Shaft Mixer
Forced twin-shaft mixing equipment for powder, granular and semi-dry materials, with three catalog model sizes.
Product overview
Forced mixing with counter-rotating shafts.
The Twin Shaft Mixer is designed to blend powder, granular and semi-dry materials in cement, building materials, chemical, metallurgy and environmental protection applications. Its counter-rotating shafts support fast, uniform mixing. The equipment can be specified for continuous or batch production, with customization according to material properties, required capacity and process conditions.
Counter-rotating shafts support fast, uniform blending of compatible materials.
The catalog identifies powder, granular and semi-dry materials as typical duties.
The arrangement can be adapted to the production process and material requirements.
Technical Configuration
Selection data, presented clearly.
Three catalog configurations are listed below. Capacity and motor power vary by model; installation and customized designs require project confirmation.
Swipe horizontally to compare all three models
| Item | Unit | Φ400 × 3000 | Φ500 × 3000 | Φ550 × 3000 |
|---|---|---|---|---|
| Mixing blade diameter | mm | Φ400 | Φ500 | Φ550 |
| Mixing shaft speed | rpm | 50.4 | 48 | 45 |
| Capacity | t/h | 11–15 | 22–25 | 25–30 |
| Installation angle | ° | 12–21 | 12–21 | 12–21 |
| Matching motor model | — | Y160M-4 | Y160L-4 | Y180M-4 |
| Matching motor power | kW | 11 | 15 | 22 |
| Matching reducer | — | JZQ400-4-III | JZQ500-IV-2Z | JZQ650-5-II |
| Moisture content | % | 1.5 | 1.5 | 1.5 |
| Dimensions | mm | 5014 × 850 × 880 | 5225 × 1286 × 828 | 5683 × 1450 × 890 |
| Total weight | kg | 2500 | 3300 | 3800 |
Applications
Application contexts.
The catalog identifies the following sectors for mixing compatible powder, granular and semi-dry materials.
- 01Cement and building materialsMaterial blending and preparation for downstream processing.
- 02Chemical and metallurgyApplication-specific powder, granular or semi-dry material mixing.
- 03Environmental protectionMixing duty matched to process and material requirements.
