TVR/TVSU Raw Meal Dynamic Separator

A dynamic separator for raw meal classification in cement grinding systems, typically used with vertical roller mills.

Request a Quote View Technical Data

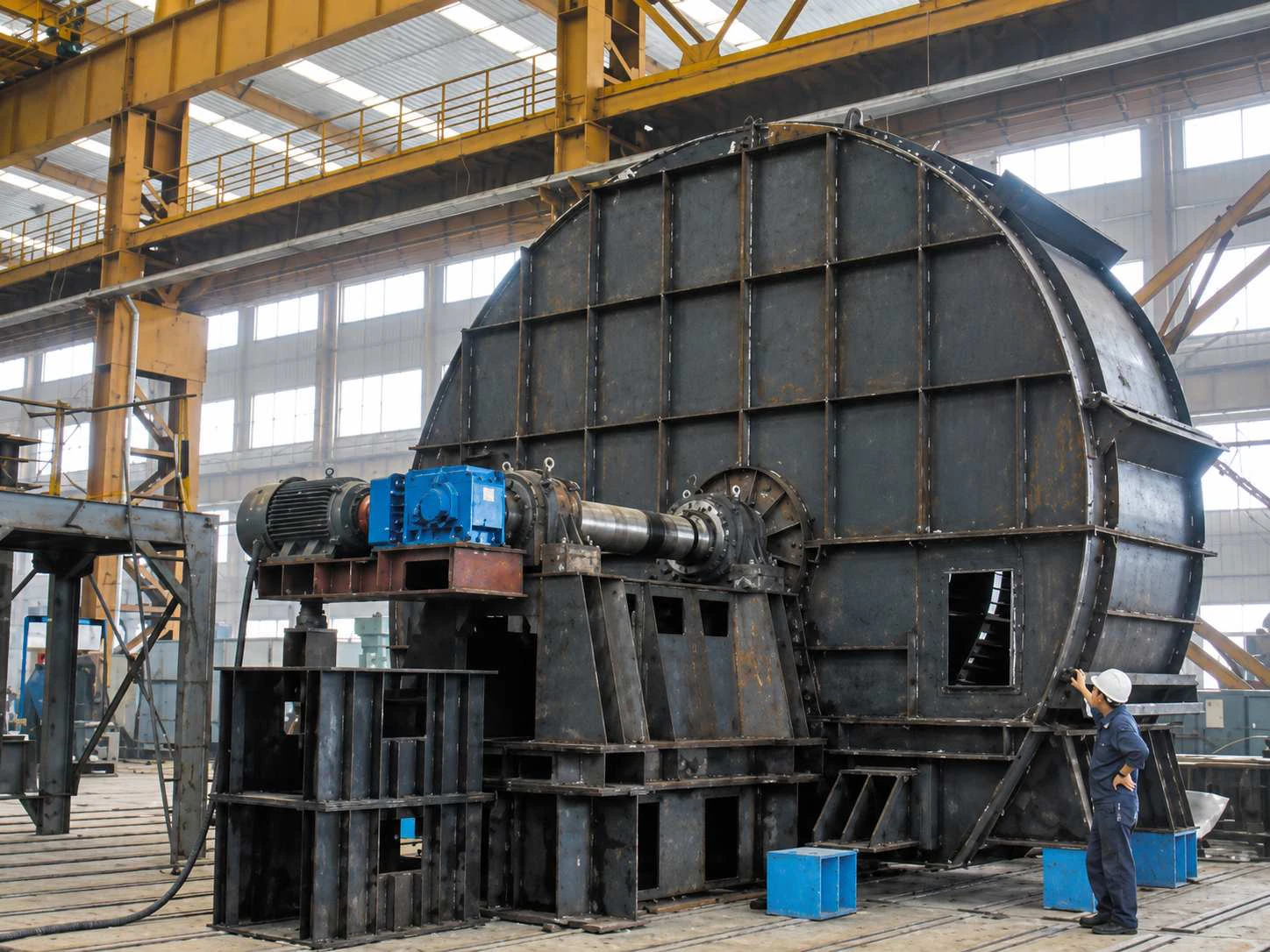

TVR/TVSU raw meal dynamic separator for a cement grinding system
TVR/TVSU Dynamic SeparatorRaw meal classification for vertical roller mill systems
SeriesTVR / TVSU
Listed capacity230–440 t/h
Maximum throughput1100–1850 t/h
Classifying air volume360,000–700,000 m³/h

Product overview

Dynamic classification within the raw meal grinding system

The TVR/TVSU raw meal dynamic separator classifies material in raw meal grinding systems, typically alongside a vertical roller mill. Its internal airflow arrangement supports consistent separation and particle size control while limiting system pressure loss. The catalog lists TVR and TVSU configurations for cement production lines with different capacity and airflow requirements.

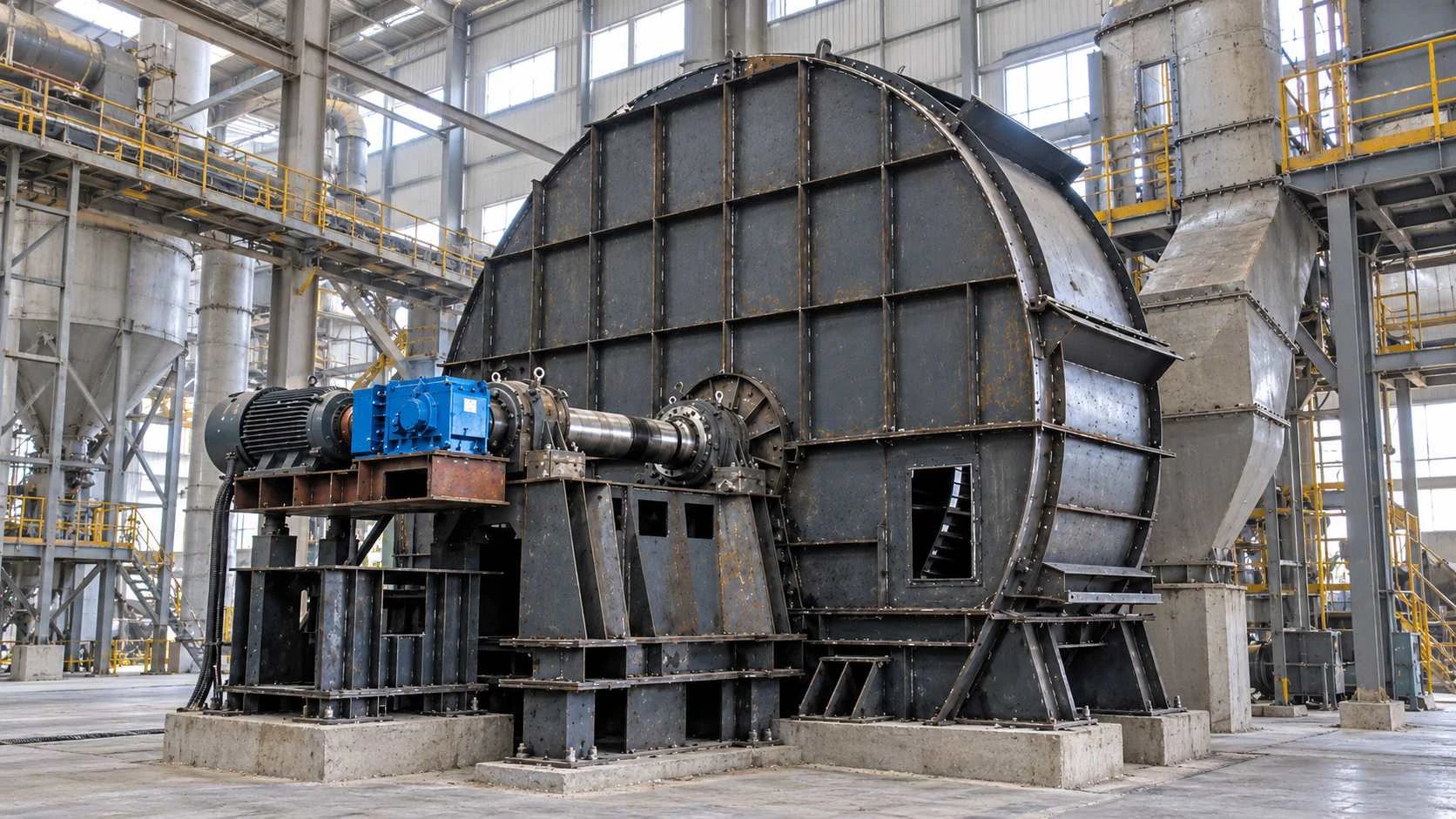

TVR/TVSU dynamic separator installed in a raw meal grinding line
Raw meal grindingThe dynamic separator classifies material within a vertical roller mill grinding system.
01 / ClassificationControl raw meal fineness

Dynamic separation supports consistent particle size control in the grinding circuit.

02 / AirflowManage classification air

The internal airflow arrangement is designed to support separation with low system pressure loss.

03 / OperationSupport stable mill operation

The separator is intended for reliable operation and maintenance access in vertical roller mill systems.

Technical Configuration

Selection data, presented clearly.

The following values cover the five TVR and TVSU models listed in the catalog. Capacity and airflow values vary by model and must be considered with the specified fineness conditions.

Catalog modelsTVR-360, TVR-400, TVSU-360, TVSU-420, TVSU-520Two TVR models and three TVSU models.
Capacity230–440 t/hTVR models have stated capacity ranges; TVSU models have individual catalog values.
Maximum throughput1100–1850 t/hModel-dependent catalog values.
Classifying air volume360,000–700,000 m³/hModel-dependent; TVSU-360 is listed at 360,000–380,000 m³/h.
Raw meal fineness at R200 μmResidue ≤2%Condition stated for all listed models.
Raw meal fineness at R80 μmResidue ≤14%Condition stated for all listed models.
Specific surface area3400–3600 cm²/gValue shown in the catalog table for all listed models.
Reference range only. Final configuration is confirmed according to material characteristics, process requirements and operating conditions.View Complete Technical Data

Applications

Application contexts.

The TVR/TVSU series is presented in the catalog for classification within cement raw meal grinding systems.

  • 01Vertical roller mill systemsSeparating raw meal as part of a vertical roller mill grinding circuit.
  • 02Cement raw meal productionControlling classified material fineness in cement production lines.
  • 03Grinding system configurationMatching separator capacity and classifying air volume to the mill and process requirements.
