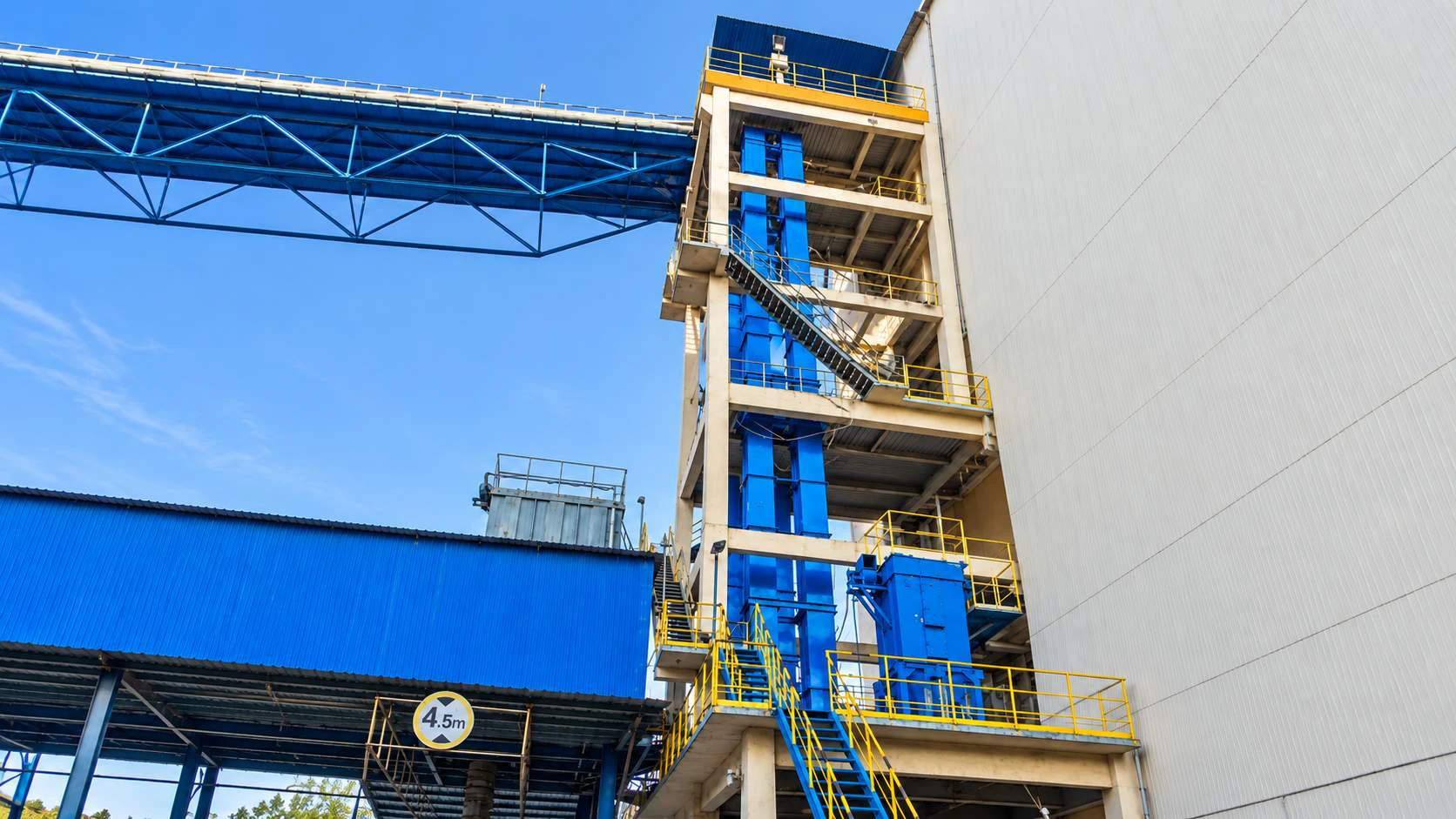

NE Plate Chain Bucket Elevator
A plate-chain bucket elevator for vertical conveying of lumpy and granular bulk materials in industrial production lines.
Product overview
Vertical conveying for lumpy and granular materials
The NE plate-chain bucket elevator lifts bulk materials between production levels using a plate-chain traction structure. The catalog lists ore, coal, cement, clinker and limestone among suitable materials. Configurations can be selected around the required capacity, lifting height, material characteristics and plant layout.
The bucket and plate-chain arrangement transfers suitable materials to a higher process level.
The series covers model-dependent particle sizes for materials such as ore, coal, clinker and limestone.
Capacity, lifting height and drive arrangement can be reviewed against the site's material handling route.
Technical Configuration
Selection data, presented clearly.
The following ranges cover the NE15–NE800 models listed in the catalog. Each model has its own capacity, particle size and power values; the endpoints do not describe one elevator.
Applications
Application contexts.
The catalog presents the NE series for vertical transfer of bulk materials in these production settings.
- 01Cement and building materialsLifting cement, clinker, limestone and other suitable production materials.
- 02MiningVertical transfer of suitable ore and other lumpy materials.
- 03Coal handlingLifting coal between compatible material handling stages.
- 04Metallurgy and chemical processingConnecting process levels where the material characteristics meet the selected model's limits.
