01Dust Collection Equipment

LDMC Type Low-Pressure Pulse Jet Baghouse Dust Collector

A long-bag pulse-jet dust collector with single-row or double-row configurations for industrial process air filtration.

Request a Quote View Technical Data

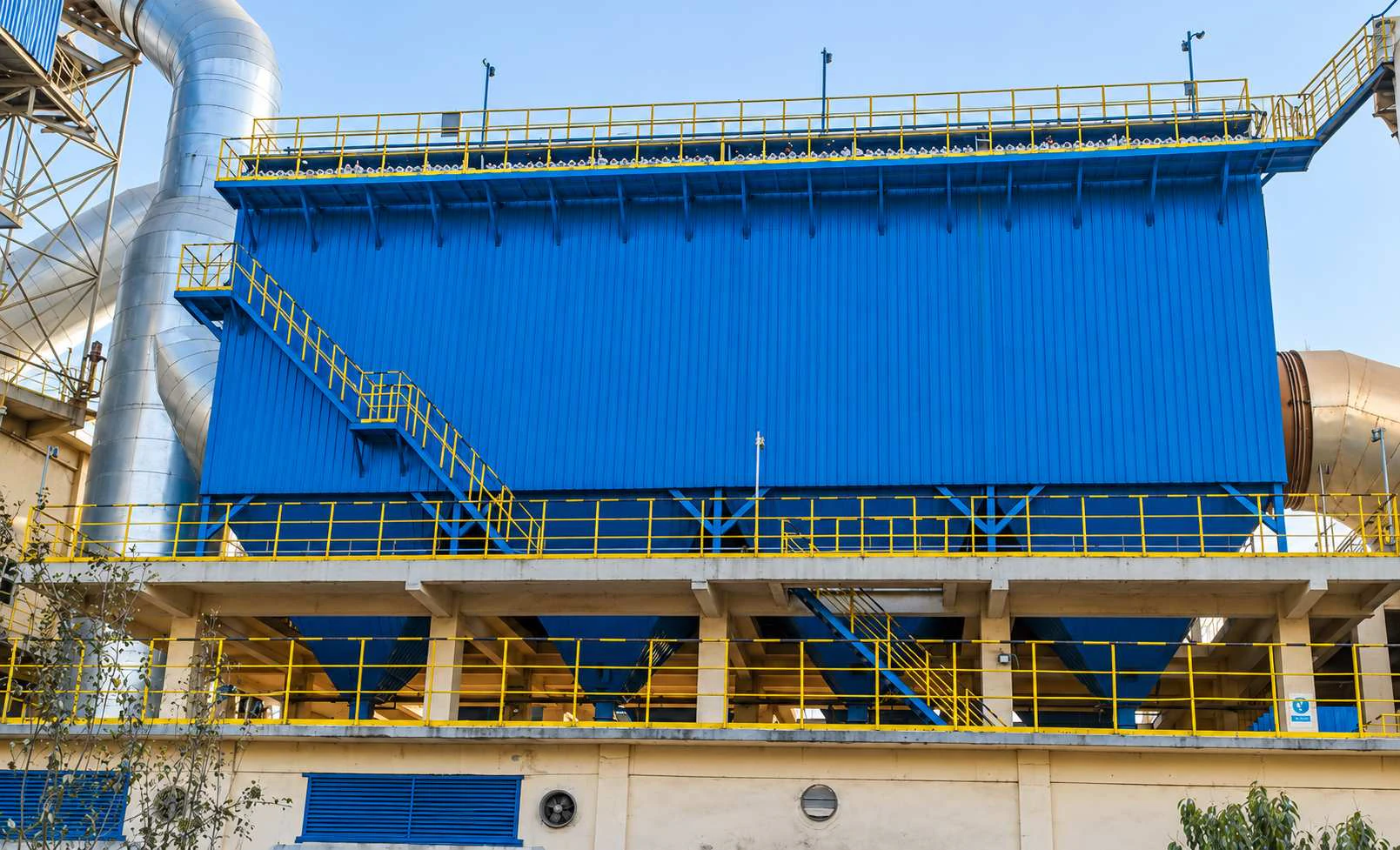

LDMC low-pressure pulse-jet baghouse installed at an industrial plant

LDMC Type BaghouseLong-bag filtration with pulse-jet cleaning

Listed models8 configurations

Air volume3690–21,160 m³/h

Filter area88–294 m²

Filter bags54–120

Product overview

Long-bag filtration for industrial dust collection

The LDMC type dust collector uses long filter bags and pulse-jet cleaning to filter dust-bearing process air. Its compact arrangement can be configured in single-row or double-row layouts to suit the available space and required air volume. The catalog identifies applications in metallurgy, machinery, chemical processing, power generation and building materials.

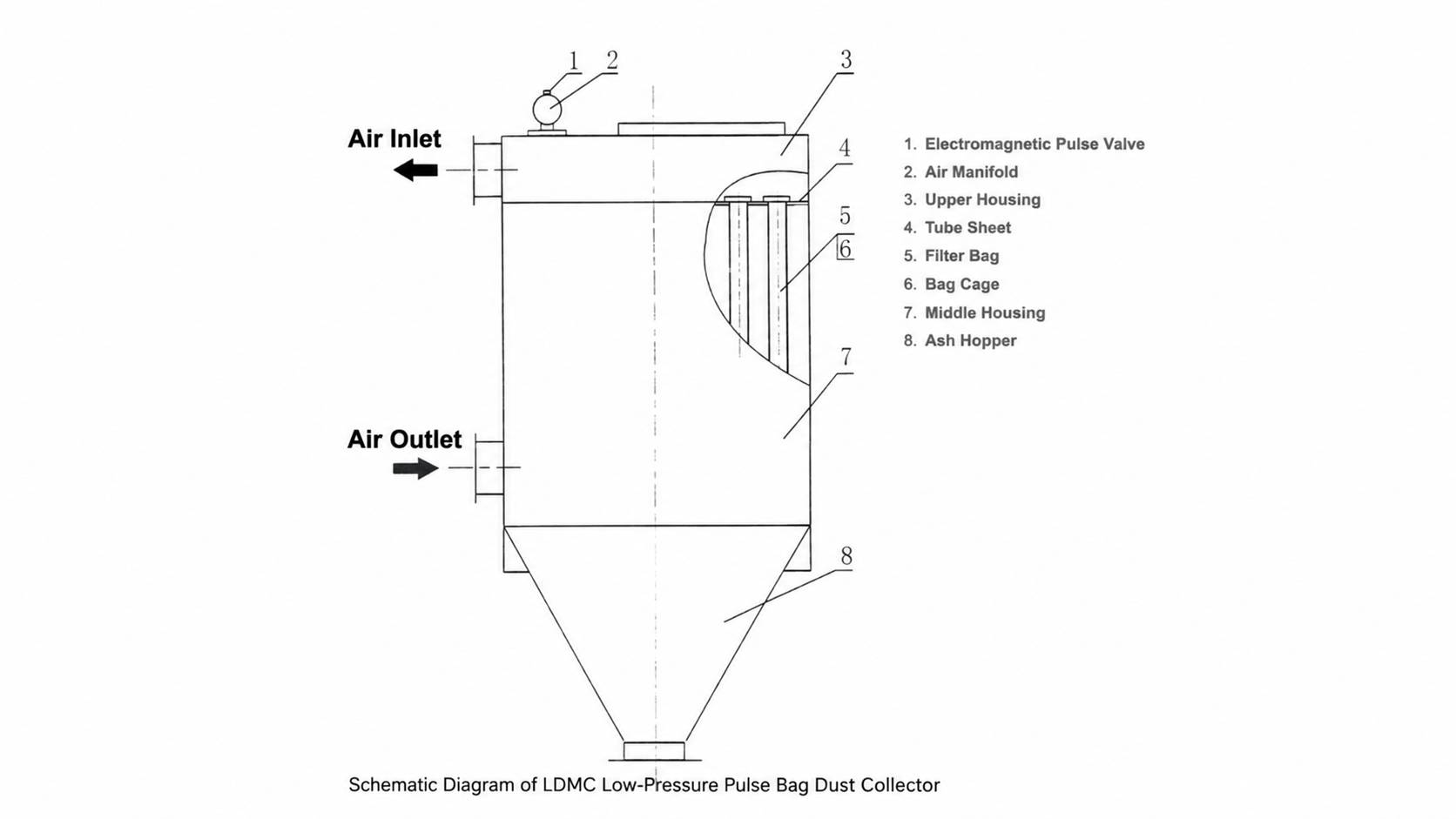

LDMC baghouse with a long filter housing and industrial service access

Long-bag arrangementThe LDMC housing can be arranged in single-row or double-row configurations for the site layout.

01 / FiltrationLong filter bags

The series uses long filter bags to provide the filtration area required by each listed configuration.

02 / CleaningPulse-jet bag cleaning

Compressed-air pulses clean the bags as part of the dust collection cycle.

03 / LayoutFlexible row arrangement

Single-row and double-row layouts can be considered according to air volume and available space.

Technical Configuration

Selection data, presented clearly.

The figures below follow the catalog's eight-model technical table. Values vary by model; the published air-volume ranges assume a filtration velocity of 0.7–1.2 m/min.

Catalog modelsLDMC-54-88 to LDMC-120-294Eight configurations are listed in the technical table.

Air volume3690–21,160 m³/hLowest and highest values across the listed model ranges.

Filter area88–294 m²Depends on model and filter bag length.

Filtration velocity0.7–1.2 m/minBasis of the model-specific air-volume table.

Number of filter bags54–120Depends on the selected model.

Filter bag sizeØ130 × 4000 mm or Ø130 × 6000 mmBag length varies by configuration.

Filter bag materialPolyester needle feltMaterial listed in the catalog table.

Dust collector resistance1470–1770 PaValue shown in the model-specific technical table.

Outlet dust concentration≤10 mg/m³Catalog table value; confirm the requirement against actual operating conditions.

Maximum negative pressure5000 PaCatalog table value.

Reference range only. Final configuration is confirmed according to material characteristics, process requirements and operating conditions.View Complete Technical Data

Applications

Application contexts.

The catalog presents LDMC dust collection for the following industrial sectors.

01MetallurgyFiltering dust-bearing air at suitable production and material handling points.
02Machinery manufacturingCollecting process dust from compatible workshop operations.
03Chemical processingFiltering suitable dust-bearing process air according to material characteristics.
04Power generationDust collection at suitable plant process points.
05Building materialsFiltration associated with material preparation and handling.

LDMC TYPE

Plan filtration around your site conditions

Share the process air volume, dust characteristics and available installation space to discuss an LDMC configuration.

LDMC Type Baghouse Technical Sheet Discuss Your Dust Collection Requirements
