FMPD Series Split Chamber Pulse Jet Baghouse Dust Collector

A split-chamber pulse-jet baghouse for industrial process gas filtration, available in FMPD32, FMPD64, FMPD96 and FMPD128 configurations.

Request a Quote View Technical Data

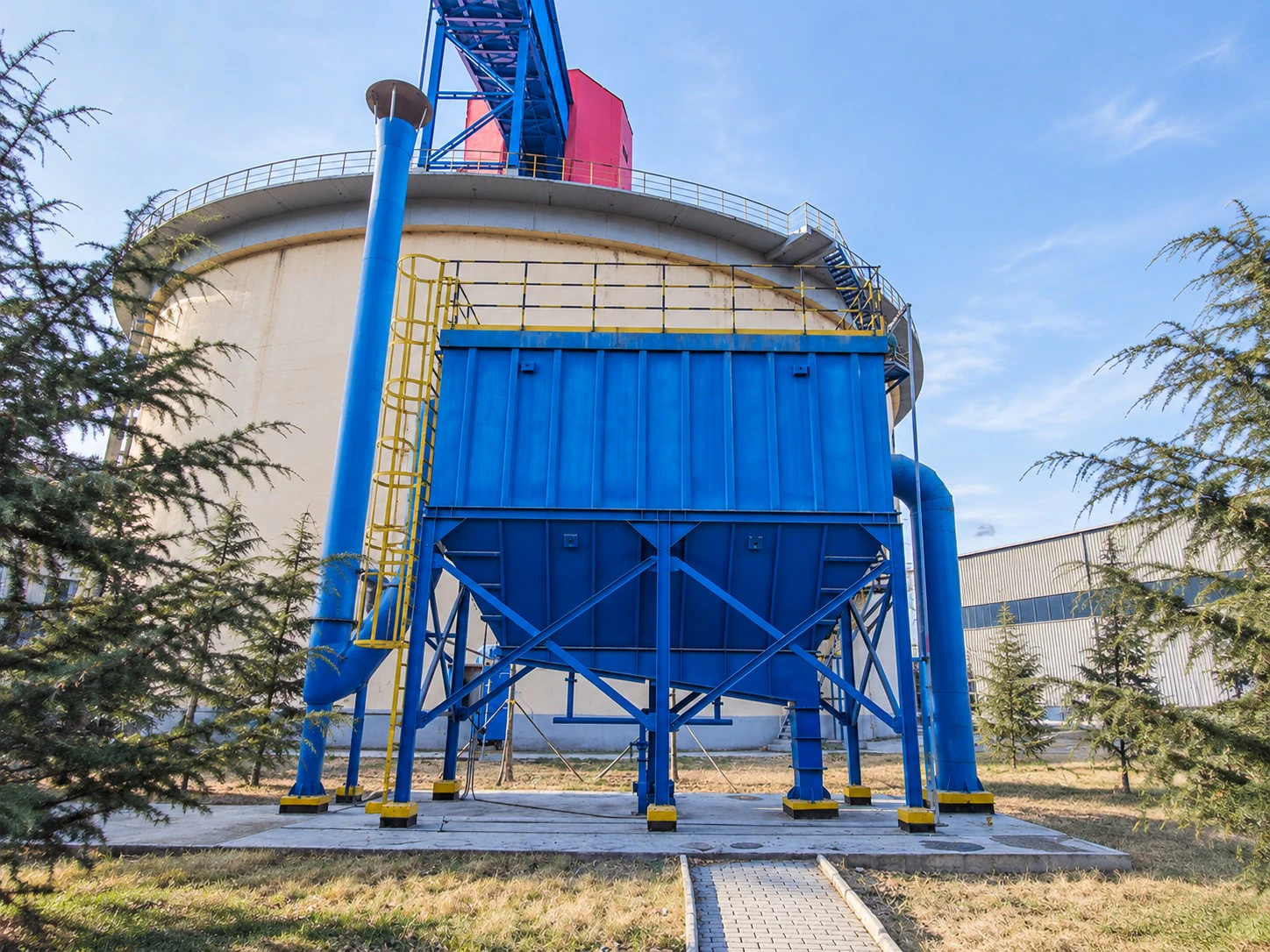

FMPD split-chamber pulse-jet baghouse dust collector at an industrial plant

FMPD Series BaghouseSplit-chamber filtration with pulse-jet cleaning

SeriesFMPD32 / 64 / 96 / 128

Air volume4000–314,500 m³/h

Filtration velocity0.7–1.2 m/min

Equipment resistance1470–1770 Pa

Product overview

Dust collection for large process gas volumes

The FMPD series combines a split-chamber baghouse structure with pulse-jet filter cleaning. Its configurations cover different process gas volumes and filter areas for industrial dust collection. The electronic catalog identifies applications in cement, metallurgy, chemical processing, mining and power generation.

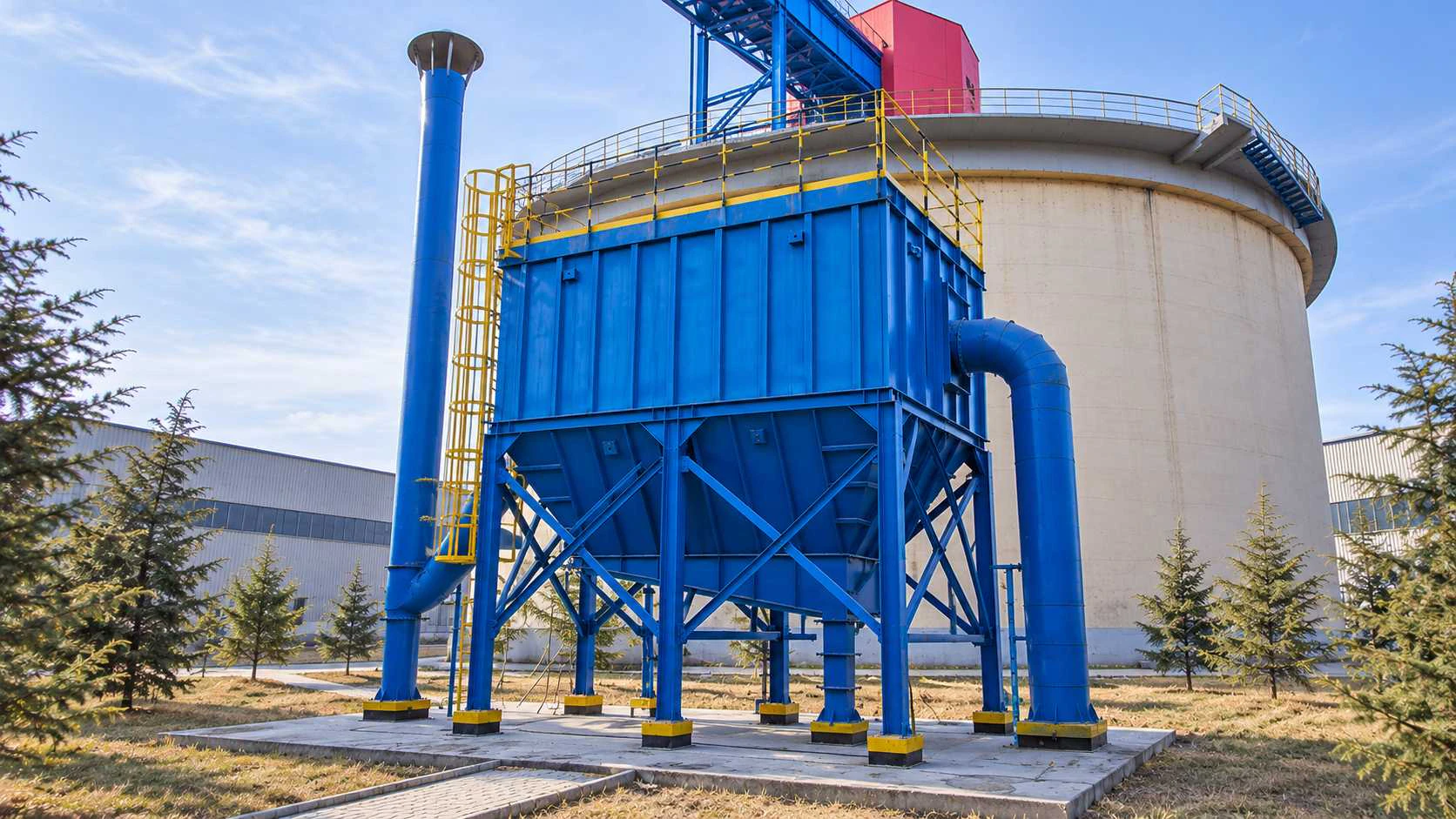

FMPD baghouse with filter housing, lower dust hoppers and connected process ducting

Process gas filtrationThe FMPD baghouse connects to plant ducting and collects separated dust below the filter chambers.

01 / StructureSplit-chamber arrangement

The chamber layout supports airflow distribution and access for maintenance.

02 / CleaningPulse-jet filter cleaning

Compressed-air pulses clean the filter bags during industrial dust collection.

03 / ConfigurationMultiple sizes for process duty

The FMPD32, FMPD64, FMPD96 and FMPD128 performance tables cover different gas volumes and filter areas.

Technical Configuration

Selection data, presented clearly.

The following figures come from the old website's FMPD performance tables. They summarize multiple models within each series; verify the exact model and operating conditions during project selection.

FMPD32 air volume4000–13,800 m³/hAcross the FMPD32-3 to FMPD32-6 configurations.

FMPD64 air volume10,750–32,250 m³/hAcross the listed FMPD64 configurations.

FMPD96 air volume16,130–138,240 m³/hAcross the listed FMPD96 configurations.

FMPD128 air volume39,310–314,500 m³/hAcross the listed FMPD128 configurations.

Filtration velocity0.7–1.2 m/minDetermine the design value according to the process conditions.

Equipment resistance1470–1770 PaRange shown in the FMPD performance tables.

Outlet dust concentration<0.05 g/m³Published table value; confirm the required result for the actual gas stream and operating conditions.

Compressed-air pressure0.5–0.7 MPaPressure listed for pulse-jet cleaning.

Inlet dust concentrationModel-dependentThe published limit differs between the FMPD32, FMPD64, FMPD96 and FMPD128 tables.

Reference range only. Final configuration is confirmed according to material characteristics, process requirements and operating conditions.View Complete Technical Data

Applications

Application contexts.

The electronic catalog identifies these process areas for FMPD series dust collection.

01Cement kilnsDust collection within a cement kiln exhaust-gas system.
02Raw mills and clinker coolingFiltration at suitable raw meal grinding and clinker cooling process points.
03Metallurgical furnacesTreatment of dust-bearing furnace exhaust gas.
04Power plantsFiltration in suitable flue-gas purification systems.
05Chemical processingDust removal from compatible industrial process gas.
06Bulk material handlingDust collection at suitable material transfer and handling points.

FMPD SERIES

Configure filtration for your dust source

Share the process gas volume, temperature, dust concentration and required outlet conditions to discuss a suitable FMPD model.

FMPD Series Baghouse Technical Sheet Discuss Your Dust Collection Requirements
