01Dust Collection Equipment

HMC Series Pulse Jet Baghouse Dust Collector

A modular pulse-jet baghouse for continuous industrial dust filtration in cement, metallurgy, mining, chemical and power applications.

Request a Quote View Technical Data

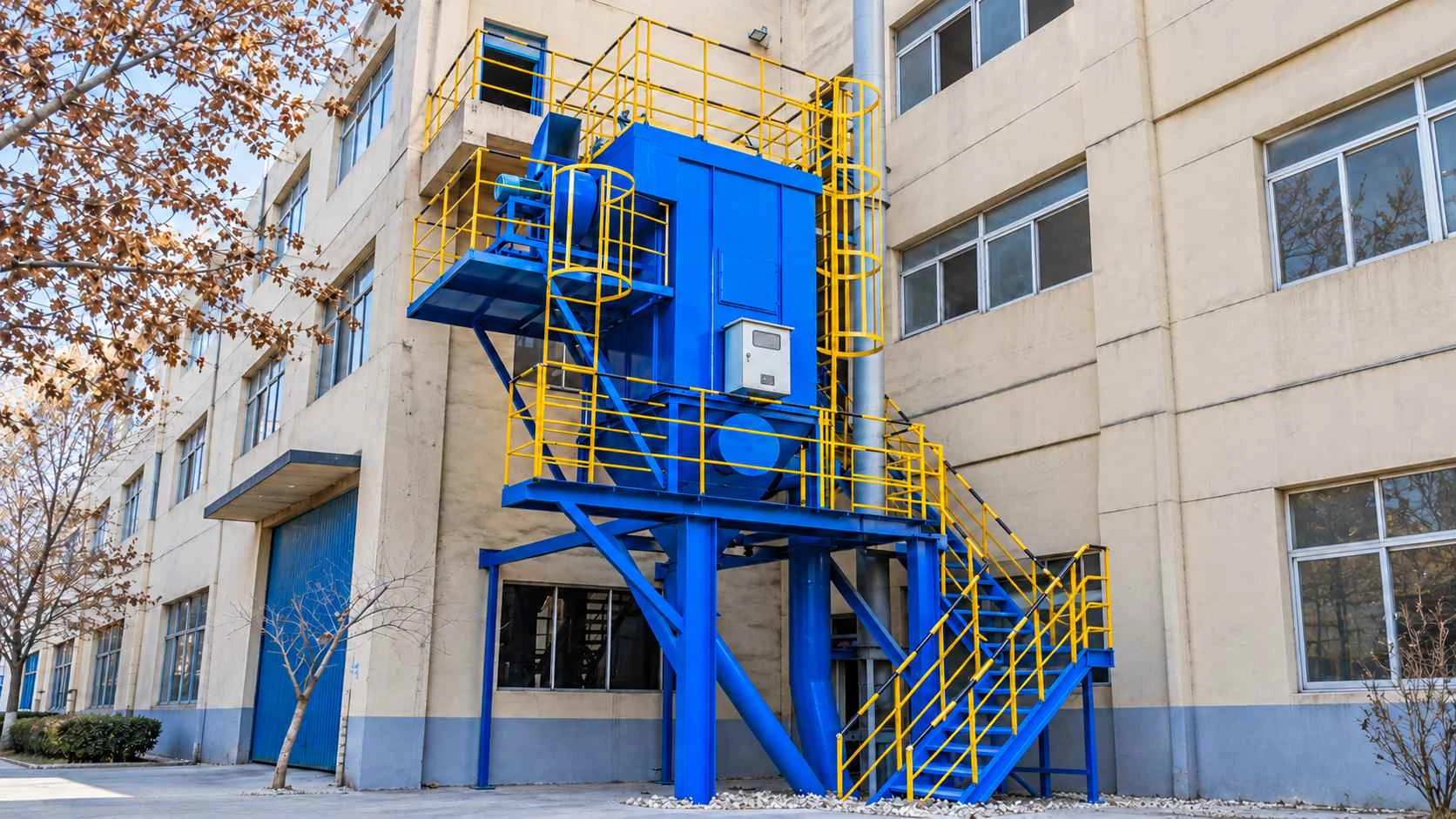

HMC series pulse-jet baghouse dust collector with service platforms and access stairs

HMC Series BaghousePulse-jet cleaning for continuous dust filtration

ModelsHMC-32–HMC-112

Air volume1000–6050 m³/h

Filter area24–84 m²

Filter bags32–112

Product overview

Continuous filtration with pulse-jet bag cleaning

The HMC series pulse-jet baghouse dust collector removes dust from industrial process air. Pulse-jet cleaning supports continued filtration during operation, while the modular structure allows the equipment to be configured around available space and process requirements. The catalog identifies cement, metallurgy, mining, chemical processing and power generation as application areas.

HMC pulse-jet baghouse installed beside an industrial production building

Industrial dust controlThe HMC baghouse connects to process ducting and provides access for routine service.

01 / CleaningPulse-jet filter bag cleaning

Compressed-air pulses clean the filter bags to support continuous dust filtration.

02 / ConfigurationMultiple filtration sizes

The series offers different filter areas and bag counts for different process air volumes.

03 / MaintenanceAccess for routine service

The equipment arrangement supports inspection and maintenance of the filter and cleaning components.

Technical Configuration

Selection data, presented clearly.

The catalog lists six HMC models. Air volume and filter area depend on the model; the listed outlet concentration must be checked against the actual dust and operating conditions.

Model rangeHMC-32, HMC-48, HMC-64, HMC-80, HMC-96, HMC-112Six models listed in the catalog.

Air volume1000–6050 m³/hOverall range across the listed model specifications.

Total filter area24–84 m²Depends on the selected model.

Filtering air velocity0.7–1.2 m/minRange shown for all listed models.

Number of filter bags32–112Corresponds to the HMC model designation.

Inlet gas temperature≤120°CCatalog limit.

Equipment resistance≤1200 PaCatalog value.

Inlet dust concentration≤200 g/m³Catalog limit.

Outlet emission concentration≤50 mg/m³Catalog value; confirm performance for the actual operating conditions.

Compressed-air pressure for cleaning0.5–0.7 MPaCatalog operating range.

Pulse valves4–14Depends on the selected model.

Fan motor power1.5–7.5 kWModel-dependent catalog values.

Filter bagØ130 × 2000 mm needle-punched feltSpecification and material listed in the catalog.

Reference range only. Final configuration is confirmed according to material characteristics, process requirements and operating conditions.View Complete Technical Data

Applications

Application contexts.

The HMC series is presented for industrial process dust collection across the following sectors.

01Cement and building materialsDust filtration at suitable material handling and production points.
02Mining and metallurgyCollection of process dust from suitable industrial operations.
03Chemical processingFiltration of compatible dust-bearing process air.
04Power generationDust control at suitable plant process points.

HMC SERIES

Size the baghouse for your process

Share the gas volume, inlet temperature, dust properties and required outlet concentration to discuss an HMC configuration.

HMC Series Dust Collector Technical Sheet Discuss Your Dust Collection Requirements
